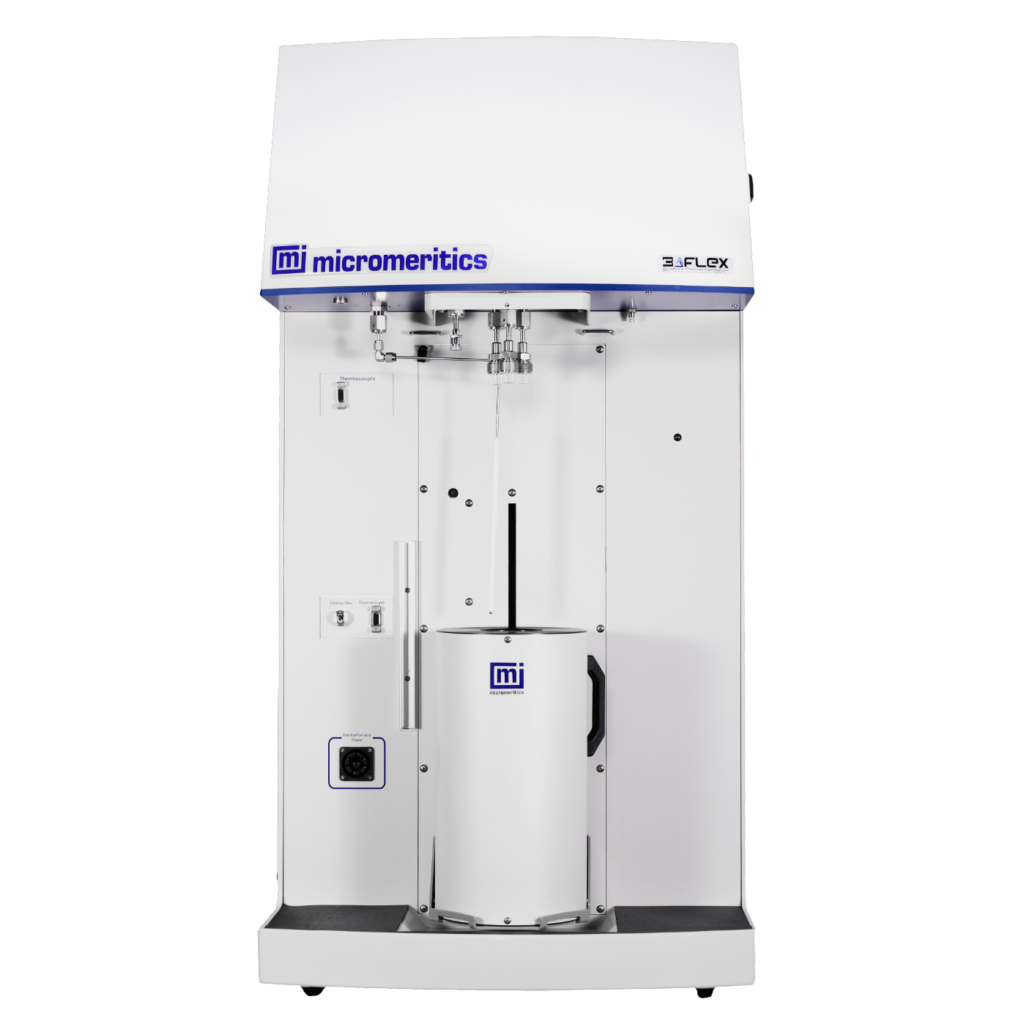

3Flex

The most advanced gas physisorption – surface area, porosity, chemisorption and temperature-programmed methods on a single platform



  • Three parallel analysis ports, one with a 0.1 torr transducer for measurements down to ultra-micropores (~0.3 nm)
  • Up to 3 probe gases simultaneously, one on each port, within a single analysis
  • Optional chemisorption (static, dynamic, pulse) with a TCD detector and furnace up to 1100°C
  • MicroActive – the largest available library of NLDFT models for pore size distribution

3Flex

Details

  • Analysis range: 1.3 × 10⁻⁹ to 1.0 P/P0 (physisorption) · 1 × 10⁻⁶ to 900 torr (chemisorption)
  • Up to 16 gas inlets in the chemisorption configuration; vapor sorption capability included as standard
  • ECR (Enhanced Corrosion Resistance) version for aggressive gases – Hastelloy, perfluoroelastomers, inert-coated steel
  • Sequencing of physisorption, chemisorption and vapor sorption on the same sample without removing it from the instrument
  • Flex (single-port version of the 3Flex) available for laboratories with lower throughput needs



Parallel ports 3 (3Flex) · 1 (Flex)
Min. measurable surface area 0.01 m²/g standard · 0.0005 m²/g krypton
Dosing proprietary servo valve, by pressure or volume
Manifold temperature 45°C ± 0.05°C, 3 RTD sensors
Furnace (chemisorption) room temperature to 1100°C, 0.1-50°C/min
Dimensions H 112 cm × W 57.2 cm × D 61 cm

Source: micromeritics.com/products/3flex and the 3Flex brochure (Micromeritics, internal archive).
