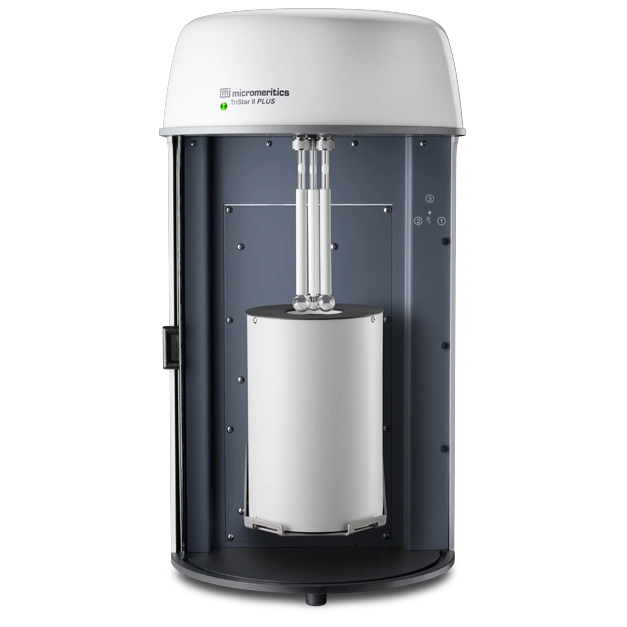

TriStar II Plus

Category Tag

View on micromeritics.com ↗



The fastest, most accurate and most reliable measurements of BET surface area, porosity and pore size distribution – BET measurement every 3 seconds on TriStar systems



  • 3 independent analysis ports operate simultaneously – 3 BET measurements in under 20 minutes
  • Dedicated Po port continuously monitors saturation pressure during analysis
  • Surface area from 0.01 m²/g with nitrogen, with optional Krypton down to 0.001 m²/g
  • In addition to nitrogen, supports argon, CO2 and other non-corrosive gases/vapors (butane, methane)
TriStar II Plus

Details

  • Isothermal Jacket – constant thermal profile along the entire sample tube and Po tube
  • Dewar provides over 40 h of continuous operation
  • MicroActive software – BET, t-Plot, Langmuir, DFT interpretation; advanced NLDFT model with overlay against mercury porosimetry
  • Up to 4 instruments from one computer for additional throughput



Specific surface area from 0.01 m²/g (nitrogen) · from 0.001 m²/g (krypton, optional)
Pore volume from 4 × 10⁻⁶ cm³/g
Pressure measurement 0-950 mmHg · P/P0 resolution <10⁻⁴
Dewar up to 40 h
Dimensions H 74 cm × W 40 cm × D 51 cm · weight 37 kg
Power 100-240 VAC, 50/60 Hz, 150 VA

Source: micromeritics.com/products/tristar-ii-plus and the TriStar II Plus brochure (Micromeritics, internal archive).
